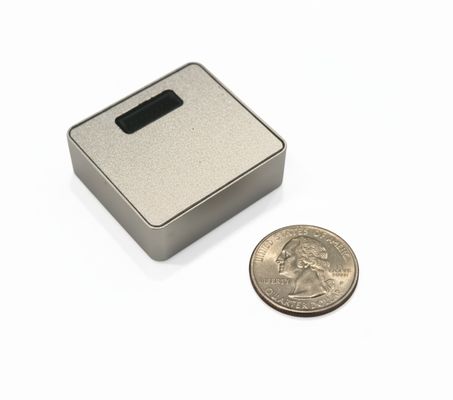

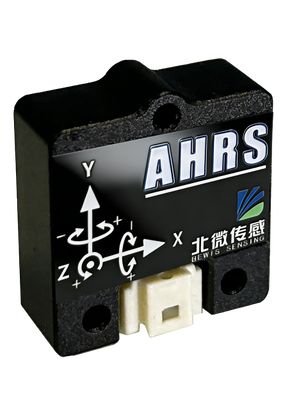

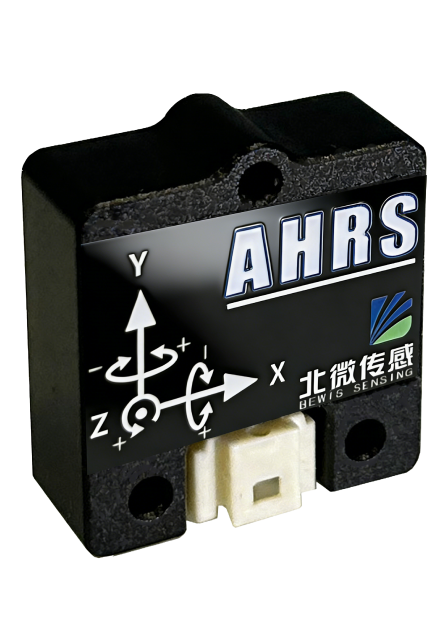

DMC630 Small Size High Precision Attitude Heading Reference System
| 브랜드 이름 | BWSENSING |
|---|---|
| 모델 번호 | DMC630 |
| 최소 주문 수량 | 1 |
| 가격 | contact us |
| 배달 시간 | 영업 일 10 일 |
| 지불 조건 | t/t, l/c |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
제품 설명
DMC630 high-precision heading reference system adopts industrial grade microcontroller with high reliability and strong anti-interference ability and high-precision magnetic sensor and driver chip. It also integrates the fast calibration algorithm and anti-interference algorithm independently developed by BeiMicro Sensing, so that it can move in space at will and carry out magnetic field calibration to resist short-time magnetic interference. This product uses a three-axis accelerometer and gyroscope to compensate for the tilt angle, making it able to provide accurate heading data even in extremely harsh environments.
This product comes with IAP upgrade function. Subsequent functions and interfaces will be upgraded through IAP after the programme is updated. It can be customized according to customers' requirements, and can be very conveniently and quickly integrated into various products with electronic compass functions.
|
Azimuth Angle
|
Measuring range | 0~360° | |
| Accuracy | ≤ 1° (RMS) after spatial calibration | ||
| Resolution | 0.1° | ||
| Repeatability | 0.5° (RMS) | ||
|
Pitch angle
|
Measuring range | ±90° | |
| Accuracy | ≤0.2° (RMS) | ||
| Resolution | 0.05° (RMS) | ||
| Repeatability | 0.05° (RMS) | ||
| Roll angle | Measuring range | ±180° | |
| Accuracy | ≤0.2° (RMS) | ||
| Resolution | 0.05° (RMS) | ||
| Repeatability | 0.05° (RMS) | ||
| Range | Accelerometer range | ±4g | |
| Gyroscope range | ±500°/s | ||
| Environments | Baud rate | 9600~460800 (default 9600) | |
| User calibration procedure | Calibration | 16-point calibration | |
| Output frequency | Raw data mode | Up to 1000HZ | |
| Solution mode | Up to 500HZ |
| Parameter | Accelerometer | Gyroscope | Magnetometer |
| Range | ±8 g | ±500 (optional ±1000) °/s | ±2 Gs |
| Noise Density | 60 µg/√Hz | 5 mdps/√Hz | 1 mGauss/√Hz |
| Bandwidth | 539 Hz | 539 Hz | - |
| Bias Stability (10s Averaging) | 0.2 mg | 16 °/h | - |
| Bias Stability (Allan Variance) | 40 µg | 4 °/h | - |
