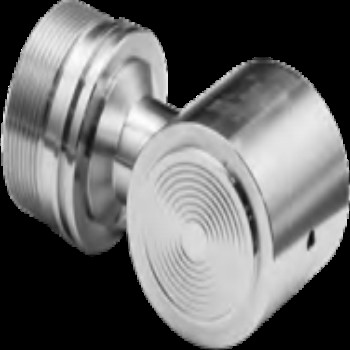

BW-DKS-DP300-M2 PA 등급의 단 결정적 실리콘 차차 압력 센서
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | BEWIS |
| 모델 번호 | BW-DKS-DP300-M2 |
| 최소 주문 수량 | 1 |
| 가격 | $81 |
| 지불 조건 | T/T |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 범위 | 100 kpa | 일방적인 과전압 | 7MPa |
|---|---|---|---|
| 양측 정압 | 25Mpa | 응답 시간 | 10명의 부인 |
| 장기간 안정성 | ≤ 0.03% FS/년 | 출력 신호 | 14mV/V |
| 작업 온도 | - 40~85' Ｃ | 비선형적입니다 | ≤ 0.16%FS |
| 온도 계수 | ≤ 0.1%FS/10K |
제품 설명
BW-DKS-DP300 차차 압력 센서는 독일의 첨단 MEMS 기술로 만들어진 단일 결정적 실리콘 센서 칩을 채택합니다.그리고 세계 최초의 단일 결정성 실리콘 듀얼 빔 서스펜션 디자인, 이는 국제적으로 선도적인 과압 성능을 달성하고 신호의 우수한 안정성을 보장합니다.지능형 원본 수입 압력 측정 대막과 신호 처리 모듈과 함께 탑재, 그것은 정적 압력 및 온도 보상의 완벽한 조합을 실현, 정적 압력 및 온도의 넓은 범위에서 높은 측정 정확성과 안정성을 제공 할 수 있습니다.
BW-DKS-DP300 차차 압력 센서는 압력 센서로 센서의 대막에 직접적으로 작용하여 대막이 압력에 비례한 미세 이동을 발생시킵니다.이 변화를 통합 전자 회로로 감지하고 출력을 압력에 대응하는 표준 측정 신호로 변환합니다..
제품 차원
■ M45 하우스 연결과 차차 압력 센서 ■ G55 하우스 연결과 차차 압력 센서
Process 연결 계획
| 모델 | 사양 코드 | 명확화 | ||||||
| BW-DKS-DP300 | PA 등급 단결성 실리콘 차차 압력 센서 | |||||||
|
범위 (캡슐) |
S1 ····························································································································································································································································· S2 ····························································································································································································································································· M1 ························· M2 ··························· M4 ··············································· L1 ····························································· |
-1KPa~1KPa -6kPa~6kPa -40kPa~40kPa -100KPa~100KPa -400kPa~400kPa -4MPa~4MPa |
||||||
| 셸 연결 스레드 |
N00 ································· M45 ·································· G55 ··························· M56 ·························· |
아니 M45*1.5 실 G55*16 실 M56*1.5 실 |
||||||
|
격리 대막 |
SS ···························· HC ··················· TA ············· GD ·············· |
SUS 316L 하스텔로이 C-276 탄탈 SUS 316L 황금화 |
||||||
| 필러 액체 |
S····················································································································································································································································· F · ·················· O ···························································· |
실리콘 오일 플루오르 오일 식물성 기름 |
||||||
| 클램핑 블록 밀폐 |
FS ··············· DS ··········· TS ··········· |
플루오르 고무 니트릴 고무 폴리테트라플루로에틸렌 |
||||||
| 추가 옵션 | 영업에 문의하시기 바랍니다 | |||||||
