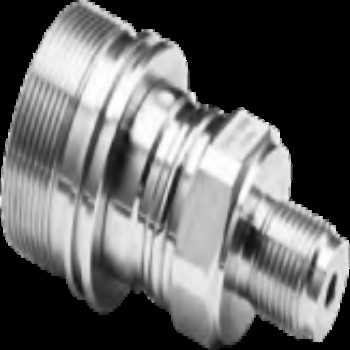

BW-DKS-CP300-S2 PA 등급의 단결성 실리콘 압력 센서
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | BEWIS |
| 모델 번호 | BW-DKS-CP300-S2 |
| 최소 주문 수량 | 1 |
| 가격 | $98 |
| 지불 조건 | T/T |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 범위 | 6Kpa | 순방향 과전압 | 1Mpa |
|---|---|---|---|
| 비선형적입니다 | ≤ 0.16%FS | 온도 계수 | ≤ 0.3%FS/10K |
| 출력 신호 | 10mv/V | 작업 온도 | - 40~85' Ｃ |
제품 설명
BW-DKS-CP300 압력 센서는 독일의 선진 MEMS 기술로 만들어진 단일 결정적 실리콘 센서 칩을 채택하고 세계 최초로 단일 결정적 실리콘 듀얼 빔 서스펜션 디자인을 채택합니다.국제적으로 선도적인 과압 성능을 달성하고 신호의 우수한 안정성을 보장합니다.지능형 원본 수입 압력 측정 대막과 신호 처리 모듈과 함께 내장되어 정적 압력과 온도 보상의 완벽한 조합을 실현합니다.높은 측정 정확도와 안정성을 넓은 정적 압력 및 온도 범위에서 제공할 수 있습니다..
BW-DKS-CP300 압력 센서는 압력 센서로 센서의 대막에 직접 작용하여 대막이 압력에 비례한 미세 이동을 발생시킵니다.이 변화를 통합 전자 회로로 감지하고 출력을 압력에 대응하는 표준 측정 신호로 변환합니다..
| 모델 | 사양 코드 | 명확화 | |||||||
| BW-DKS-CP300 | PA 등급 단결성 실리콘 압력 센서 | ||||||||
|
범위 (캡슐) |
S2 ····························································································································································································································································· M1 ························· M 2 ········································································· M4 ··············································· L1 ····························································· L2 ························································· |
6KPa 40kPa 100kPa 400KPa 4MPa 40MPa |
|||||||
| 셸 연결 스레드 |
N00 ································· M45 ·································· G55 ··························· M56 ·························· M27 ························ |
아니 M45*1.5 실 G55*16 실 M56*1.5 실 M27*2 실 |
|||||||
|
격리 대막 |
SS ···························· HC ··················· TA ············· GD ·············· |
SUS 316L 하스텔로이 C-276 탄탈 SUS 316L 황금화 |
|||||||
| 필러 액체 |
S····················································································································································································································································· F · ·················· O ···························································· |
실리콘 오일 플루오르 오일 식물성 기름 |
|||||||
| 프로세스 연결 |
M20M ······················· G12M ··················· N12M ················ N12F· ··········································· |
M20 x1.5 외부 실 G1/2 외부 실 1/2NPT 외부 스레드 1/2NPT 내부 실 |
|||||||
| 압력 종류 |
- ············· A ············· |
가이드 압력 절대 압력 |
|||||||
| 추가 옵션 | 영업에 문의하시기 바랍니다 | ||||||||
